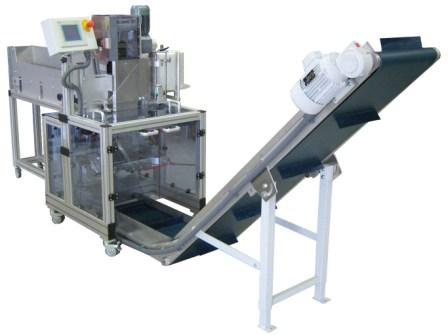

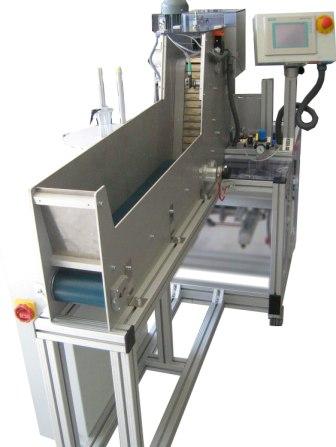

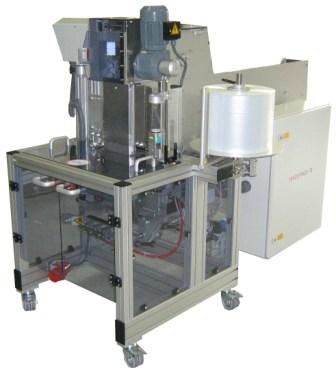

DSB 250 STA

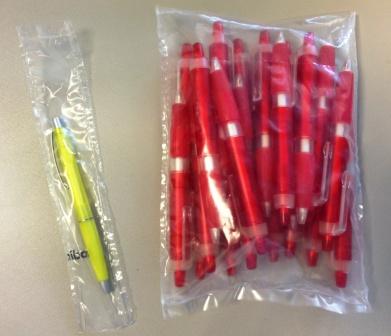

The perfect solution for packaging writing instruments.

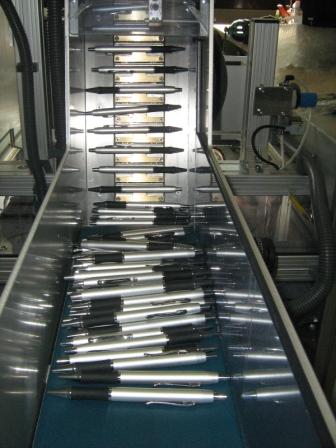

As long as there are slim utensils to be packaged (pens, axes, and so on) the DSB 250 STA will always be the perfect partner. Its patented gentle method of feeding parts into the bags also means that this machine can pack parts with sensitive surfaces without any loss in quality.

System Features

  • fully automatic counting and packaging machine using integrated product store
  • 12.000 products per hour, 1-50 pieces per bag
  • complete device with automatic feeding from stock and counting
  • polyethylene semi-tubular film
  • versatile structure in profile technology
  • easy to maintain

Technical details

  • Control: Siemens PLC S7-300
  • Bag-width: 60 to 300mm
  • Bag-length: infinitely adjustable
  • Bag-height: 80 / 140 / 200 mm
  • film-strength: 40 bis 150 µm
  • Electrical connection: 230 / 400 V, 50 Hz
  • Compressed air: 150 l/min, 6 bar
  • Measurements: 1100 x 1400 x 1100 mm (LxWxH)
  • Weight: approx. 160 kg

Standard

Steuerung

  • Siemens PLC S7-300
  • Control the number of individual bags, multi-chamber bags and batches
  • Day counter and counts the entire quantity
  • Data interfaces and preparation of options
  • Malfunction message in plain language
  • Controlled film unwinding
  • Bag-length measurement
  • Film-end warning device

Bags

  • Bag separation/perforation with a knife
  • Consistently high weld seam quality thanks to electronic surveillance

Film

  • Neutral
  • Printed
  • anti-corrosive or anti-static film
  • Special film on request

Options

Control

  • PC control with data management
  • Print-mark control for using pre-printed film
  • Malfunction message with visual and/or audible signal

Bags

  • Poly-tube bag made from flat film
  • bag ear-off perforation along/across
  • Product compressor

Bag marking

  • Label dispenser
  • Thermal transfer printer

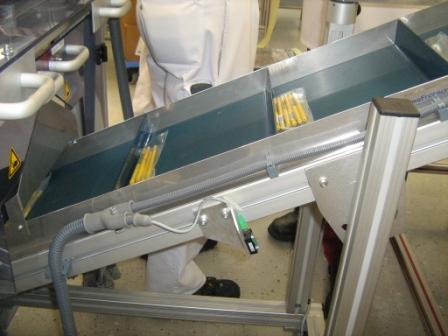

Bag Transport

  • Belts of different performances
  • Controlled box-filling
  • Bag rentention device
  • Checkweigher
