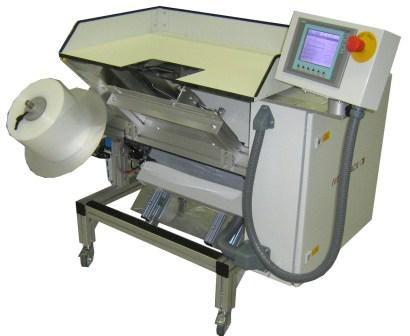

DSB 250 LCC

The economic poly-tube bag packaging machine

The low investment costs make the DSB 250 LCC packaging machine ideal for fast, flexible packaging into poly-tube bags. It's extremely small structure means that stand-alone products can be fed in using a work table or integrated into a fully automatic packaging line using existing feed-in and assembly machines.

System Features

  • Polyethylene semi-tubular film
  • versatile structure in profile technology
  • filling-pipe quick-change system
  • easy to maintain

Technical details

  • control: Siemens PLC C7-200
  • capacity: up to 35 bags / min
  • bag-width: 60 bis 175 mm
  • bag-length: infinitely adjustable
  • bag-height: 80 mm
  • film-strength: 40 to 150 µm
  • electrical connection: 230V, 50Hz
  • Energy consumption: max. 6 A
  • compressed air: 150 l/min, 6 bar
  • measurements: 900 x 1250 x 880 mm (LxWxH)
  • weight: approx. 100 kg

Standard

Control

  • Siemens PLC C7-200
  • Controls the number of individual bags, zones and batches
  • Day counter and counts the entire quality
  • Malfunction message in plain language

Bags

  • Bag separation with a blade
  • Consistently high weld seam quality thanks to electronic surveillance

Film

  • Neutral
  • printed
  • anti-corrosive film
  • special film on request

Options

Control

  • print-mark control for preprinted film
  • bag-length measurement
  • film-end warning device

Bags

  • poly-tube bag made from center-folded film
  • bag-chains
  • bag tear-off perforation along

Conveyance

  • individual manual workplaces
  • fully automatic counting devices
  • integration into existing feed-in systems

Bag transport

  • belts of different performances
  • bag retention devices
  • check-weighers
