Continuous Weighers

Reliable and automated post-packaging quality control.

Eliminating of costly complaints that result from incomplete product ranges or insufficient quantities. Further minimizes expenditure on staff who usually perform the final check.

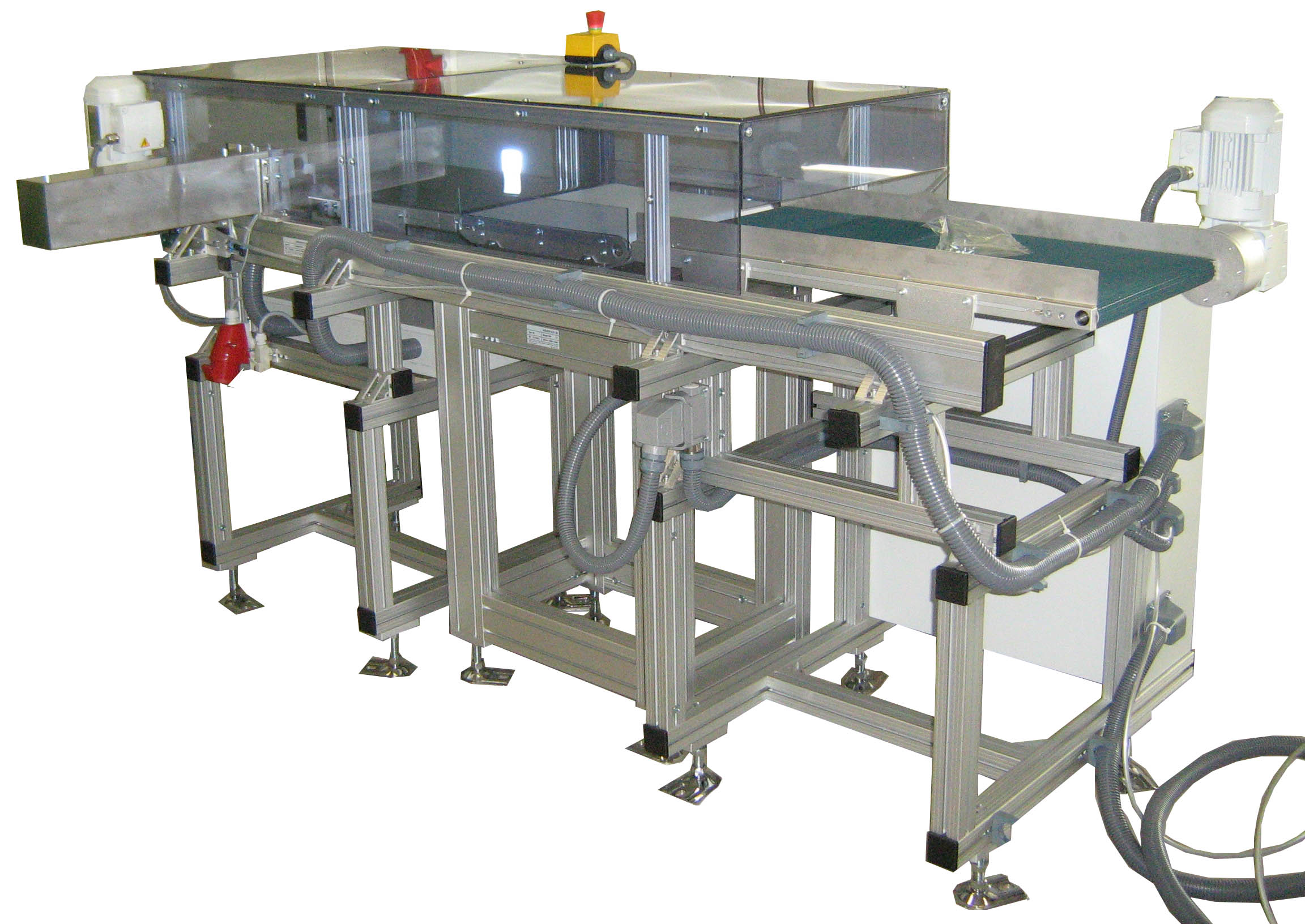

Continous check weighers are used for high packaging capacities or heavy packages. Because of the packages to weigh are transported bumplessly by a supporting band to the scales, the setting time if the weighing unit is very short. Therefore a high weighing capacity can be realized. A pusher is then sorting the bags which do not have the target weight from the other.

It is possible to synchronize the device with system control and connect it to the main PC or data management sytem.

System Features

  • Weighing range: 0-5000g
  • Weighing tolerance ±1g (regardless of end weight)
  • Weighing table 400 x 400mm
  • Capacity: up to 30 cycles/min (depending on the bag)
  • Sorting "good / bad"
  • Adjustable belt speed
  • Adjustable belt runtime
  • Adjustable batch amount
  • Series fault recognition

Options

  • Design as continiuous scale
  • Item 1
  • Item 2
  • Item 3
  • Item 4
  • Item 5
  • Item 1
  • Item 2
  • Item 3
  • Item 4
  • Item 5
