Check Weigher

Reliable and automated post-packaging quality control.

Eliminating of costly complaints that result from incomplete product ranges or insufficient quantities. Further minimizes expenditure on staff who usually perform the final check.

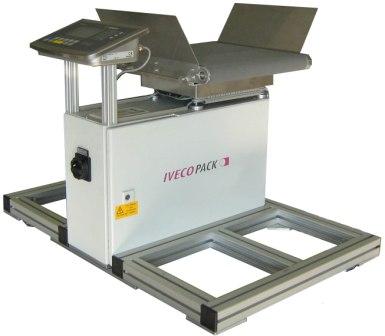

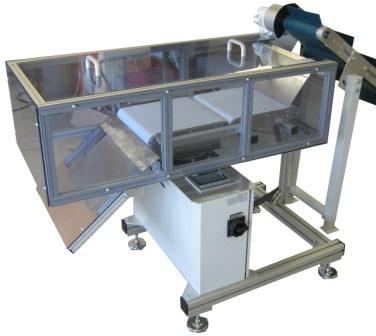

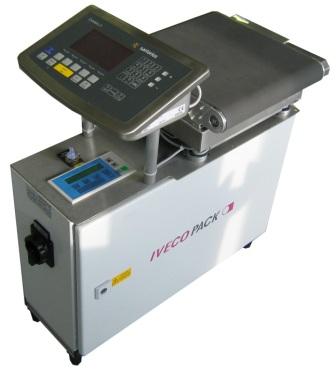

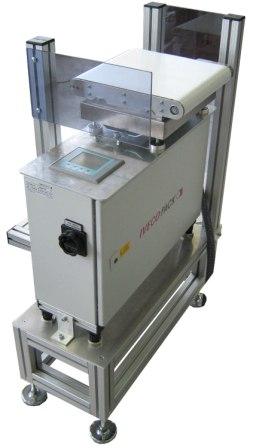

The compact scales/sorting unit is mounted straight onto the control cabineet where it can be set to the desired discharge height and/or adapted for automatic part feed-in using a base frame. The check-weighing unit with distributer belt for establashing the batch weight of the goods to be packaged and for sorting them into good/bad weighing sections is standardly contained.

It is possible to synchronize the device with system control and connect it to the main PC or data management sytem.

System Features

  • Weighing range: 0-5000g
  • Weighing tolerance ±1g (regardless of end weight)
  • Weighing table 300 x 300mm
  • Capacity: up to 20 cycles/min (depending on the bag)
  • Intake/discharge height: min 570mm
  • Sorting "good / bad"
  • Adjustable belt speed
  • Adjustable belt runtime
  • Adjustable belt direction
  • Adjustable batch amount
  • Series fault recognition

Options

  • Design as continious scale
